22KW Carbon Steel Double Roller Granulator for Fertilizer with 1-4 t/h Capacity

Name: 22KW Carbon Steel Double Roller Granulator for Fertilizer with 14 th Capacity
Brand: Shenghong
Price: 1 USD

Brand Name : Shenghong

Model Number : SHZ

Certification : SGS BV ISO

Place of Origin : Zhengzhou China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 20 pcs per day

Delivery Time : 15 Days

Packaging Details : Package or Container

Application : Fertilizer granulator machine

Material Moisture : 2%-5%

Powder : 15-22KW

Material : Carbon steel

Weight : 1.2T

Capacity : 1-4 t/h

Suit for : NPK Compound fertilizer

Warranty : 12 Months

Pellet Diameter : 2-10mm

Contact Now

Potassium Phosphate Fertilizer Double Roller Granulator 22KW

Product Overview

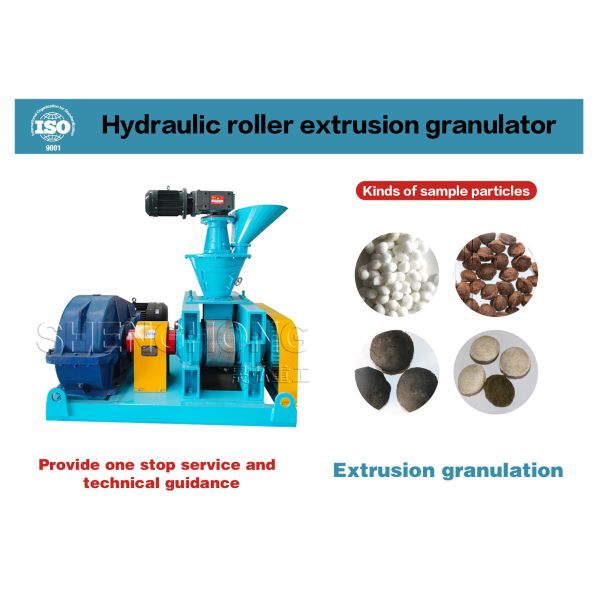

The SHZ series hydraulic roller extrusion granulator is a compact and powerful dry granulation machine. Built with a reliable hydraulic system, it turns powder materials into strong, uniform granules in one pass — no drying, no binders.

22KW Carbon Steel Double Roller Granulator for Fertilizer with 1-4 t/h Capacity

Technical Specifications

Model	Power (kW)	Speed (r/min)	Output (t/h)	Particle Size (mm)	Dimensions (mm)
SHZ-30	55	1450	2-4	3-30	2300×2480×2050
SHZ-45	75	1480	3-6	3-50	2580×2100×2110
SHZ-60	90	1485	5-10	5-60	3000×2800×2200

Key Features

Hydraulic pressure — Adjustable and stable for consistent granule quality
No drying needed — Room temperature operation saves energy
One-step forming — Powder to granules directly
Durable rollers — Anti-corrosion, wear-resistant alloy
Low maintenance — Simple design with easy access

Industry Applications

Fertilizer, pharmaceutical, feed, chemical, rare earth, metallurgy, coal, environmental protection.

Operating Principle

Material enters → rollers compress under hydraulic pressure → sheets form → crushed → screened → finished granules discharge.
