Organic Fertilizer Granulator Machine For Final Ball Shape Granules

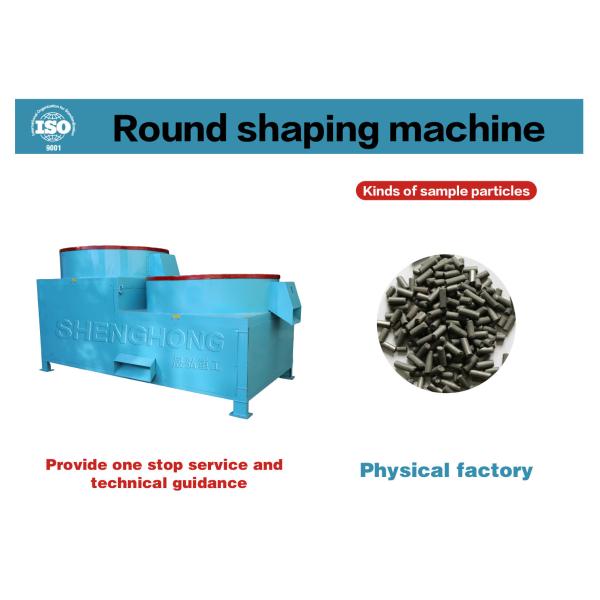

Introduction Of Fertilizer Round Shaping Machine
Organic fertilizer (biological) ball granulation machines The series of machines are suitable for the following granulation.
1. The organic fertilizers with turfs, lignite, sludge of organic fertilizes and straws as materials can be made into granules;
2. Organic fertilizers or organic compound fertilizer granulation with chicken manure (animal manure) as materials;
3. Cake fertilizer granulation with bean cakes as the main materials;
4. Organic fertilizer granulation with residues of urban rubbish or sewage treatment plants as materials.
Feature
The machine in the production process can be combined with organic fertilizer pelletizer, disk pelletizer, flat mold pelletizer and other equipment used at the same time, it is composed of two or three throwing cylinders arranged in sequence, the material after several times of throwing round, finished particles are discharged from the discharge port, the finished particles have the same particle size, round and smooth, and the finished product rate is as high as 98%.
Technical Parameters
| Model |
SHY-800-2 |
SHY-1000-2 |
SHY-1200-2 |
SHY-1200-3 |
SHY-1500-2 |
SHY-1500-3 |
|
Capacity
(t/h)
|
0.5-2 |
2-3 |
3-6 |
5-8 |
6-12 |
8-15 |
|
Pawer
(kw)
|
4/4 |
5.5/5.5 |
7.5/7.5 |
7.5/7.5/7.5 |
11/11 |
11/11/11 |
|
Rotation speed
(r/min)
|
296 |
298 |
302 |
305 |
309 |
311 |
|
Length × width × height
(mm)
|
1920*950*1220 |
2180*1080*1320 |
2580*1260*1320 |
3360*1260*1740 |
3350*1640*1740 |
4900*1640*2150 |
Application
1.This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, blower, and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the damp granule undertaken the action of air floating force in ring gap, rotating centrifugal strength and gravity itself, appear circle rope-turning movement and become high-degree ball shape pellet.
2.It is wide used for pharmaceutical industry, foodstuff industry and chemical industry etc, Roundness of a good pill pellets, the surface smooth, spherical particles
